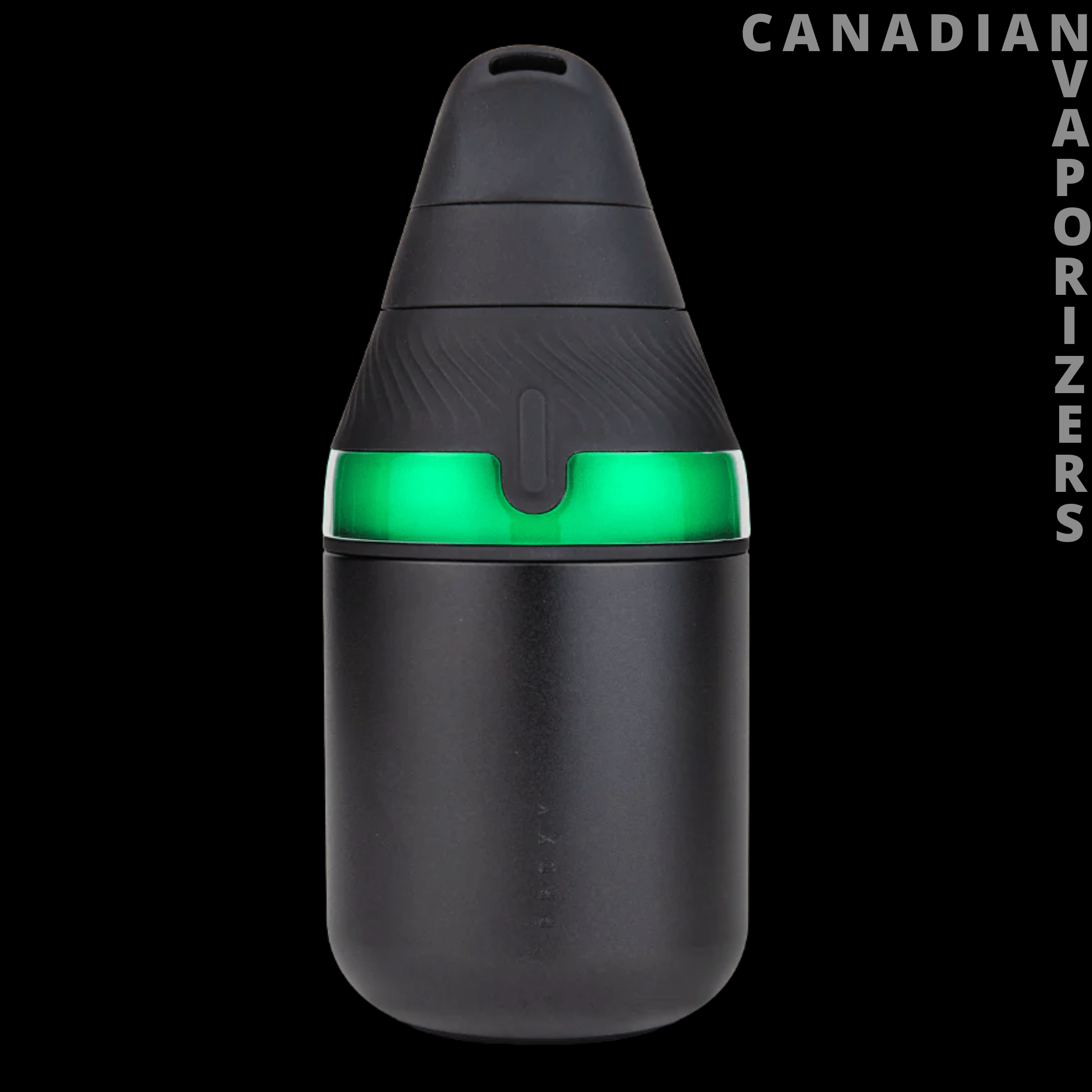

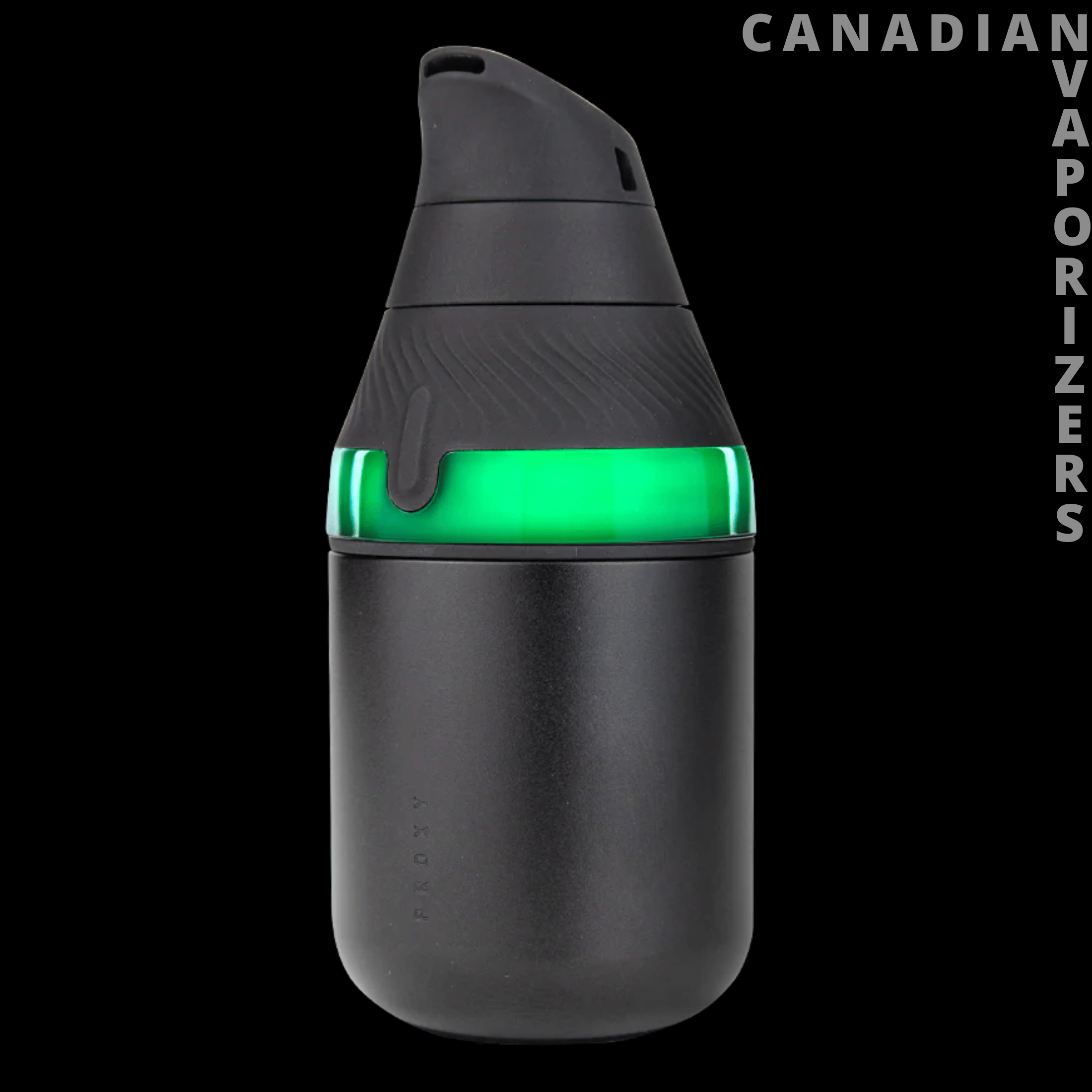

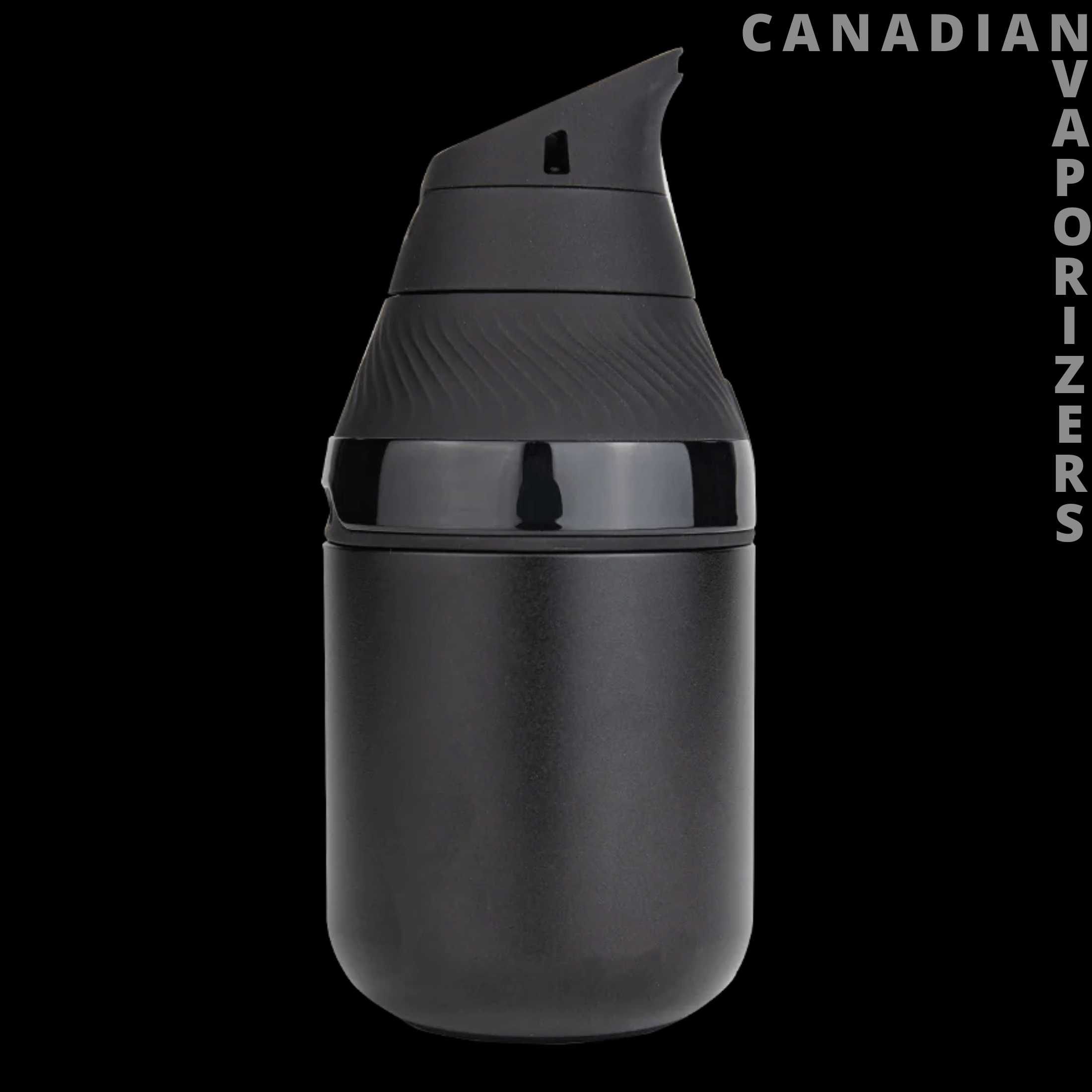

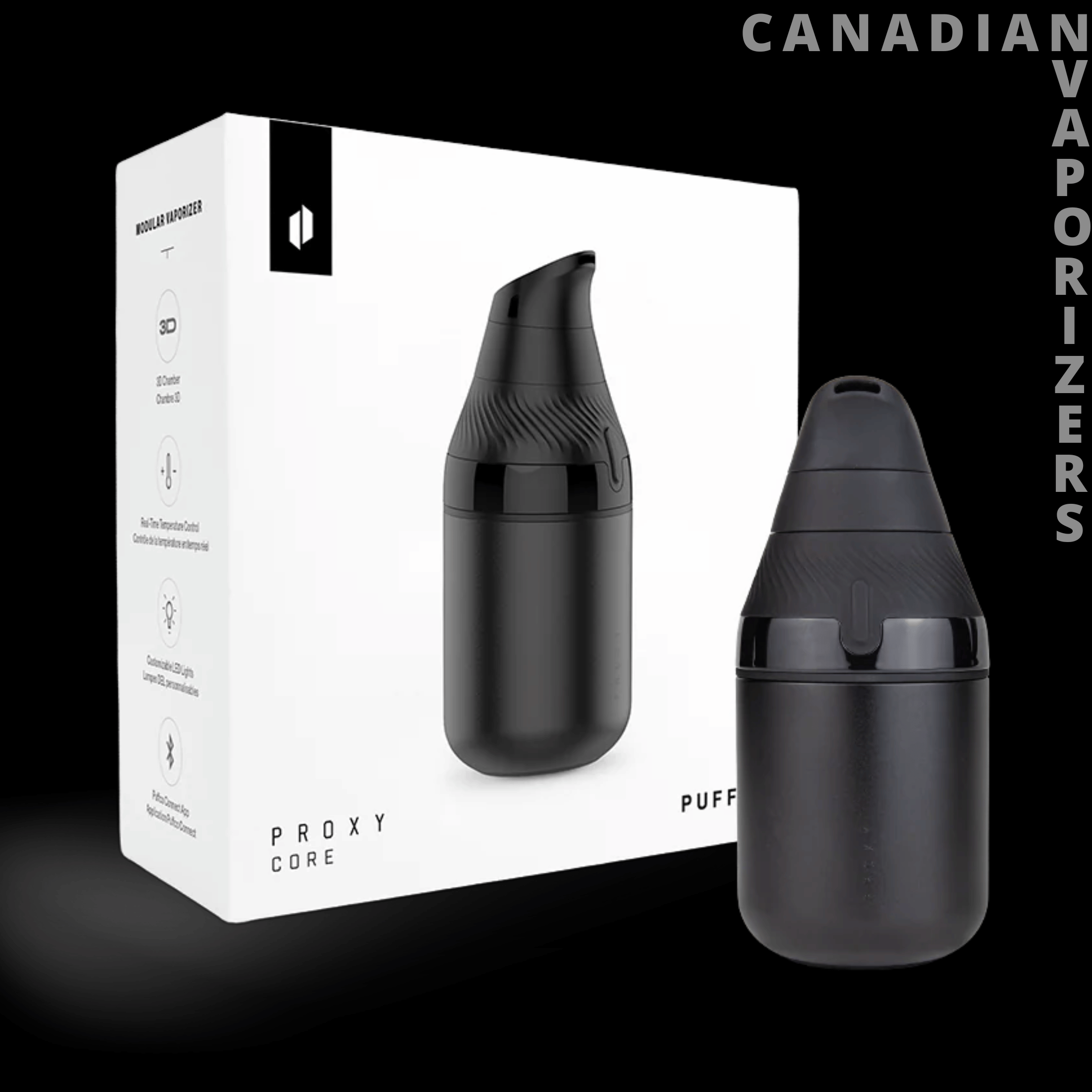

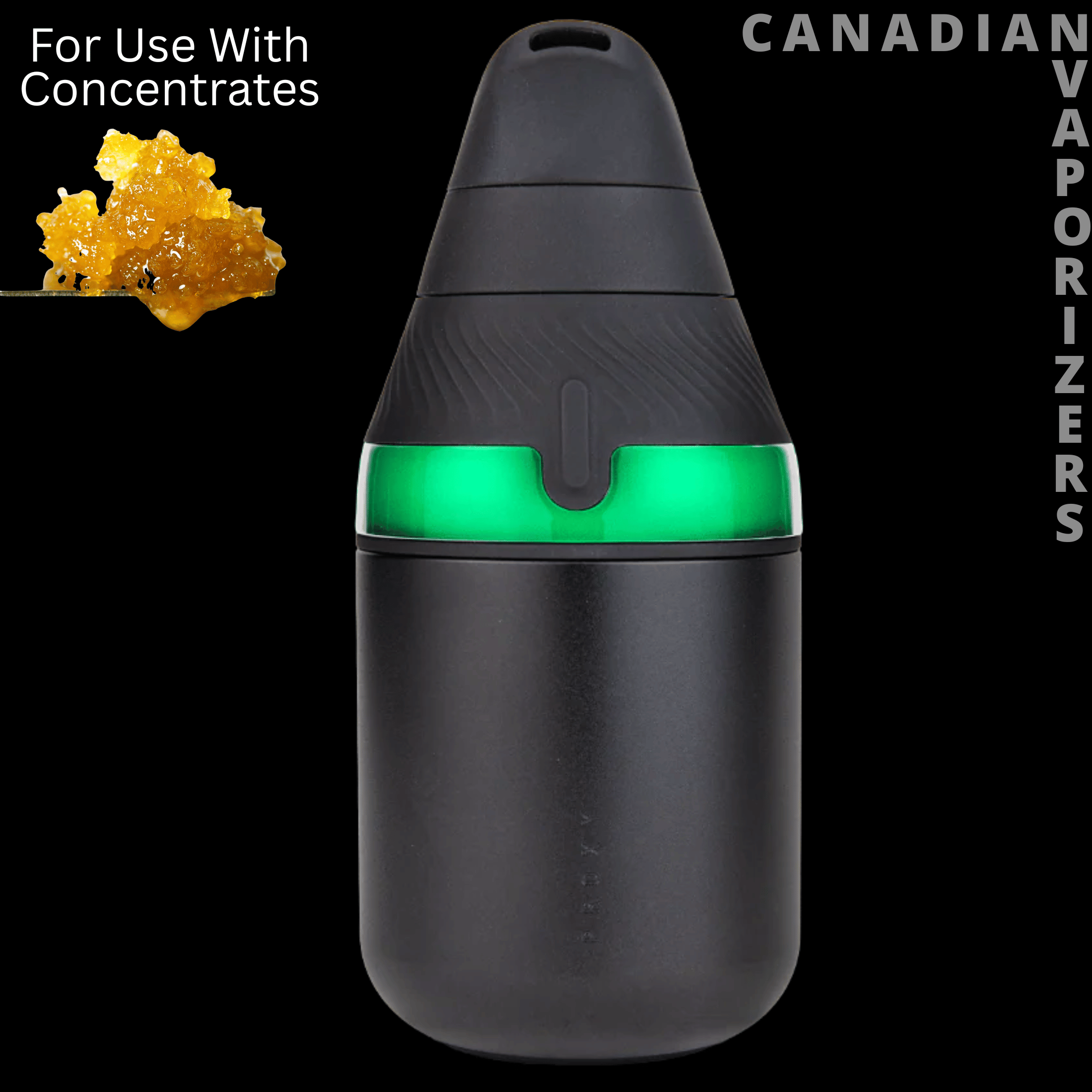

Puffco Proxy Core Kit

This compact, glass-free version of the Proxy platform packs Puffco's 3D Chamber heating, real-time app-based temperature control, and the same modular ecosystem into a smaller, more pocketable form factor.

Choose your colour, check current availability and order from Canadian Vaporizers with fast domestic shipping and applicable Puffco warranty coverage.

Key Features at a Glance

• 3D Chamber heating (sides and bottom)
• Impact Airpath design that spins the included ceramic terp pearls
• Compact, glass-free, portable form factor
• Real-time temperature control via Puffco Connect
• Four onboard heat presets
• USB-C charging

The Puffco Proxy Core Kit delivers the full Proxy concentrate experience in a smaller, more portable format. It uses the same 3D Chamber heating system as the rest of the Proxy line, heating the sides and bottom of the chamber for more even vaporization, paired with ceramic terp pearls that distribute concentrate and improve extraction. Instead of the glass pipe housing used on the standard Proxy, the Core Kit replaces it with a compact anodized aluminum body and a silicone mouthpiece, built specifically for everyday carry.

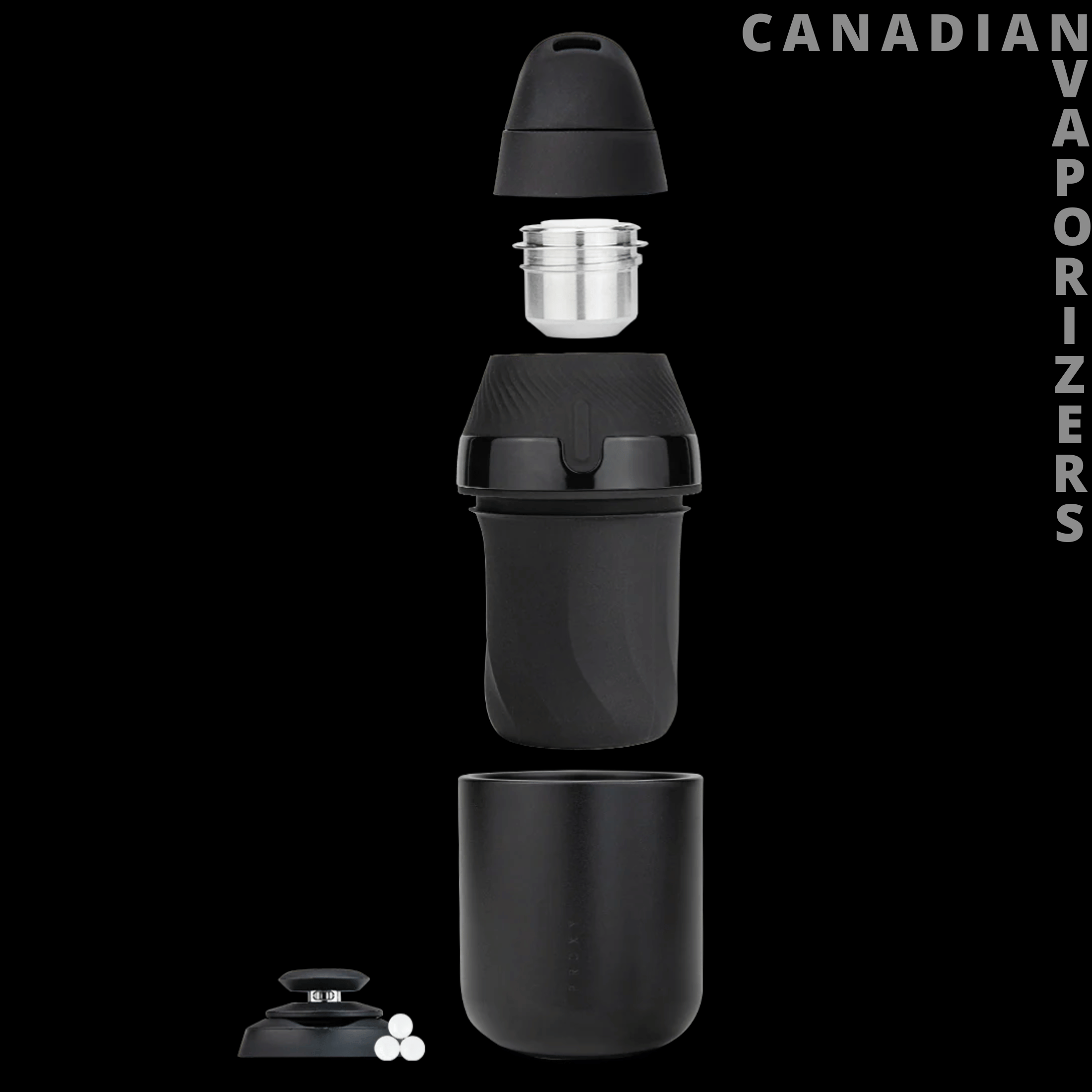

• Puffco Proxy Base
• Core Cup
• Core Mouthpiece
• Terp Pearls (x3)
• Joystick Cap
• USB-C Charging Cable

You want a concentrate vaporizer that's easy to carry every day while still delivering rich, consistent sessions. It's the best fit for someone who wants the Proxy platform's modularity and app control, but without the bulk or fragility of a glass pipe attachment. Since the base is fully modular, you can start with the Core and expand into other Proxy Collection pieces later if you want a bigger, glass-based setup down the line.

1. Use the included loading tool to place a small amount of concentrate onto the bottom of the 3D Chamber.
2. Hold the power button for 3 seconds to turn the device on.
3. Single-click to cycle through the four heat presets.
4. Double-click to begin the heating cycle. The device pulses while heating.
5. Once it vibrates and flashes twice, the chamber is ready.
6. Inhale gently from the mouthpiece to begin your session.

Pro tip: a terp pearl between 3mm and 5mm improves concentrate movement and vapor production. The Puffco Connect app also lets you fine-tune temperature, adjust session length, and save custom heat profiles.

The Proxy Core's 3D Chamber heats from the sides and bottom rather than relying on a single bottom plate, which helps produce more even vaporization and preserves terpenes early in the session. The Impact Airpath design channels airflow so that inhaling spins the included ceramic terp pearls, spreading concentrate across the heated chamber walls and increasing the surface area exposed to heat. Because the Core replaces the standard glass pipe with a compact aluminum cup and silicone mouthpiece, the vapor path is shorter than on the full-size Proxy, which does mean vapor can run a bit hotter than the glass version, worth keeping in mind if you're especially sensitive to that.

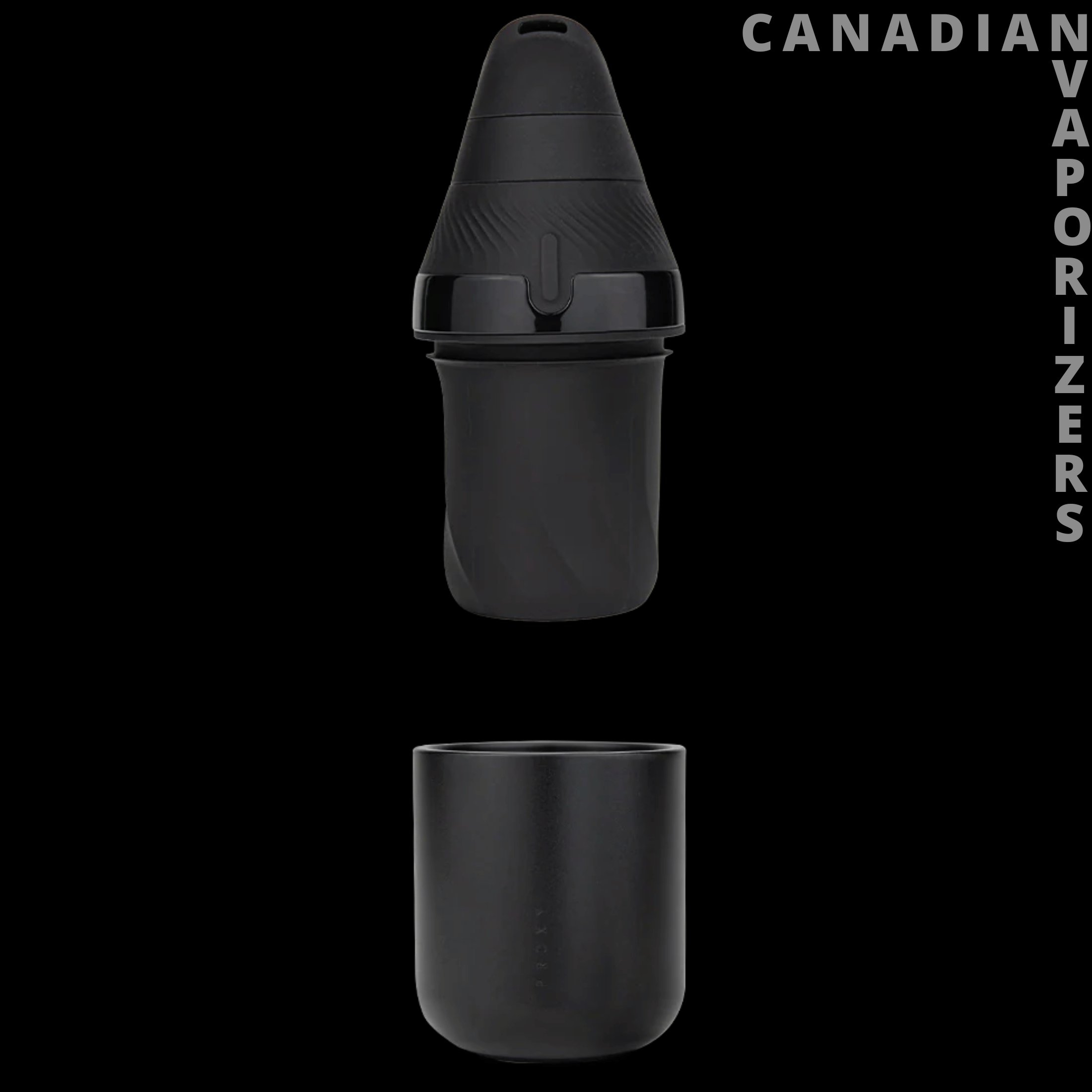

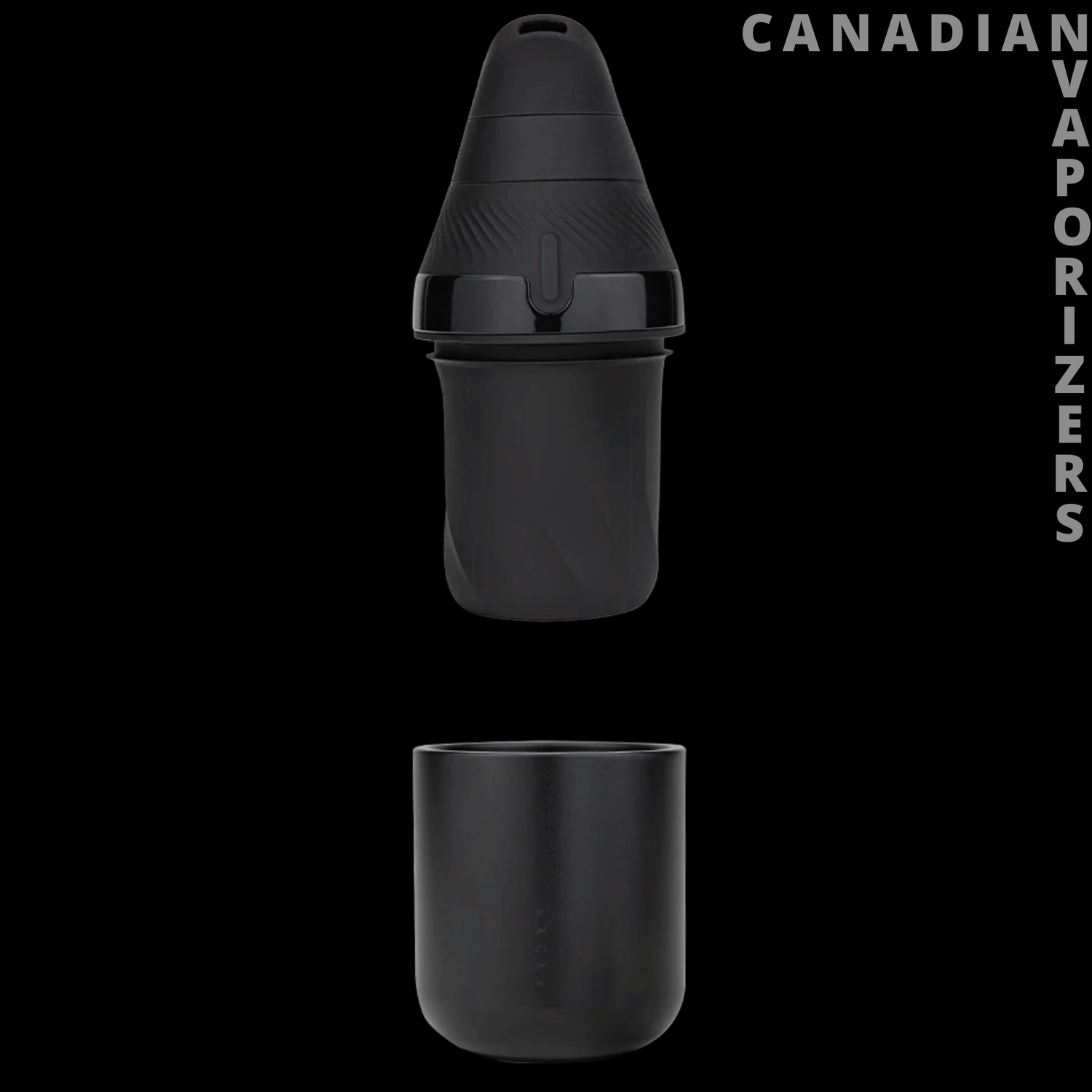

The Proxy Core trades the glass pipe housing of the standard Proxy for a compact anodized aluminum body and a silicone mouthpiece, prioritizing durability for daily carry over the classic pipe aesthetic. The aluminum cup stays lightweight while handling repeated heating cycles well, and the silicone mouthpiece reduces the risk of breakage if the device gets tossed in a bag or pocket. The base itself remains fully modular and can be removed and used with other pieces in the wider Proxy Collection.

The Proxy Core heats up in roughly 15 to 25 seconds and offers four onboard presets:

• Blue (~254°C / 490°F): Focuses on terpene flavor with lighter vapor
• Green (~266°C / 510°F): A balanced mix of flavor and vapor density
• Red (~277°C / 530°F): Thicker vapor while still preserving good flavor
• White (~285°C / 545°F): Maximum vapor output and intensity

Through the Puffco Connect app, you can go beyond these presets to fine-tune temperature to the exact degree, adjust session length, and build custom heat profiles.

Battery Life and Charging

The Proxy Core typically delivers 12 to 15 sessions per charge, depending on your temperature settings and session length. Charging runs through USB-C and takes about 1.5 to 2 hours for a full charge, with an LED indicator showing your current battery level.

Portability and Discreetness

Without a glass pipe attachment, the Proxy Core is genuinely built for carrying around, small, cylindrical, and easy to store or pocket. It sits somewhere between a traditional concentrate rig and a typical portable vape pen, the compact size helps keep it low-profile, though like any concentrate device, it can still produce noticeable vapor and aroma at higher settings. The Puffco Connect app also lets you adjust or dim the LED lighting for more discreet use in low-light settings.

How to Clean the Puffco Proxy Core

1. Make sure the device is powered off and has cooled slightly.
2. Unscrew the 3D Chamber from the base by twisting counter-clockwise.
3. Remove the mouthpiece and take out the terp pearl, if you're using one.
4. While the chamber is still slightly warm, use a cotton swab to gently wipe the inside in a circular motion.
5. For a deeper clean, soak the chamber and mouthpiece in 90%+ isopropyl alcohol for about 20 minutes, then let them fully air-dry before reassembling.

Important: don't submerge the aluminum cup in isopropyl alcohol. If residue builds up on it, clean it gently with a cotton swab instead and let it air-dry before reinstalling the base.

Accessories That Fit the Puffco Proxy Core

The Proxy Core is part of the wider modular Proxy platform, so it stays compatible with most of the same accessories built for the original Proxy. Want to switch to a glass setup? The Puffco New Proxy Wizard adds a classic pipe-style form with a longer vapor path for smoother, cooler hits, while the Puffco New Proxy Bub adds water filtration for an even smoother draw. For maximum filtration, the Ryan Fitt Recycler Glass 2.0 continuously cycles water through the piece for cooler, more filtered vapor.

Want a spare chamber on hand? The Puffco New Proxy 3D Chamber swaps in easily for maintenance or heavier use. And for cleaner concentrate loading, the Puffco Hot Knife makes handling sticky extracts a lot less messy.

Puffco Proxy Core Kit Warranty

The Proxy Core Kit is covered by a 2-year manufacturer warranty on the base and its electronics, covering defects in materials and workmanship under normal use, provided it was purchased through an authorized retailer with proof of purchase. The chamber itself, like on the rest of the Proxy line, is classified as a consumable part and carries a shorter 1-month warranty. Damage from misuse, improper cleaning, or liquid exposure isn't covered.

Pros and Cons

Pros:

• Compact, glass-free design built for durability and everyday carry
• App control for deeper temperature and session customization
• Compatible with the full Proxy accessory ecosystem
• Fast heat-up and simple single-button operation

Cons:

• The thicker unit can be harder to fit in a pocket than a slimmer pen
• The shorter airpath (versus the glass version) can run hotter
• Silicone components can absorb some concentrate residue over time
